Anchor Line

Product Code: Anchor Line

Qty: Add Inquiries

Description

Preventing The storm drove the ship forward shearing its anchor line and setting it adrift

				Standard Polypropylene Fabric				Standard Polyester Fabric				Standard Nylon Fabric
Diameter		Length		Weight		Tensile Breaking Force		Weight		Tensile Breaking Force		Weight		Tensile Breaking Force
mm	inch	m	ft	kg/pc	lb/pc	kg	lb	kg/pc	lb/pc	kg	lb	kg/pc	lb/pc	kg	lb
9.5	3/8"	30	100	1.86	4.09	560	1232	3.02	6.64	910	2002	3.11	6.84	937	2062
9.5	3/8"	45	150	2.74	6.03	560	1232	4.48	9.86	910	2002	4.61	10.15	937	2062
9.5	3/8"	60	200	3.62	7.96	560	1232	5.94	13.07	910	2002	6.12	13.46	937	2062
12	1/2"	30	100	2.95	6.49	690	1518	5.07	11.15	1248	2746	5.22	11.49	1285	2828
12	1/2"	45	150	4.35	9.57	690	1518	7.53	16.57	1248	2746	7.76	17.06	1285	2828
12	1/2"	60	200	5.75	12.65	690	1518	9.99	21.98	1248	2746	10.29	22.64	1285	2828
12	1/2"	90	300	8.55	18.81	690	1518	14.91	32.80	1248	2746	15.36	33.79	1285	2828
16	5/8"	30	100	4.00	8.80	860	1892	7.60	16.72	1709	3760	7.83	17.22	1760	3873
16	5/8"	45	150	5.90	12.98	860	1892	11.30	24.86	1709	3760	11.64	25.61	1760	3873
16	5/8"	60	200	7.80	17.16	860	1892	15.20	33.44	1709	3760	15.66	34.44	1760	3873
16	5/8"	90	300	11.60	25.52	860	1892	22.60	49.72	1709	3760	23.28	51.21	1760	3873
18	3/4"	30	100	5.60	12.32	1110	2442	9.90	21.78	2210	4862	10.20	22.43	2276	5008
18	3/4"	45	150	8.25	18.15	1110	2442	14.70	32.34	2210	4862	15.14	33.31	2276	5008
18	3/4"	60	200	10.90	23.98	1110	2442	19.50	42.90	2210	4862	20.09	44.19	2276	5008
18	3/4"	90	300	16.20	35.64	1110	2442	29.10	64.02	2210	4862	29.97	65.94	2276	5008
25	1"	30	100	9.30	20.46	1770	3894	16.00	35.20	3500	7700	16.48	36.26	3605	7931
25	1"	45	150	13.75	30.25	1770	3894	23.80	52.36	3500	7700	24.51	53.93	3605	7931
25	1"	60	200	18.20	40.04	1770	3894	31.60	69.52	3500	7700	32.55	71.61	3605	7931
25	1"	90	300	27.10	59.62	1770	3894	47.20	103.84	3500	7700	48.62	106.96	3605	7931

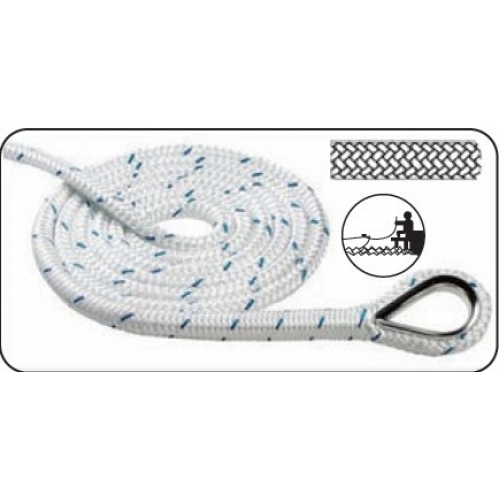

* available with metal and nylon thimble
